   * Store files (Donwload "BCR Store .zip")

    New MCE3 for Live5    28 September 2005

    Changes
    -use two presets
    -button 33~40 : Select Track (LEDs show selcted track)
    -add "Control" button  (Control + Jog Wheel : Tempo change)

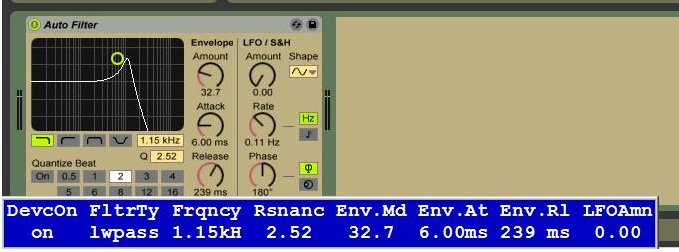

*huskervu compatible


1.Settings up BCR2000

<If your BC-Edit woks fine>

   1.put this file  into a folder

       Windows:C:/Documents and Settings/(user)/BCEdit/Devices
       Mac OSX: (User)/BCEdit/Devices

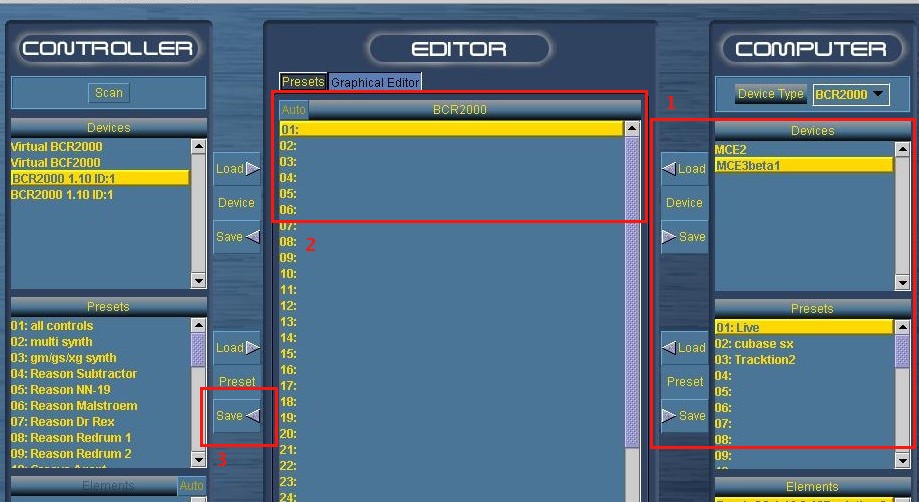

    2.Run BC-Edit




            1) New Device and preset appears on a browser
            2) Load a preset to an editor
            3) Save it to your BCR2000


<If your BC-Edit does not works>

  1. Select an empty preset on your BCR2000
   2. Send this file  to your BCR2000
   3. If you want to save it,see here (Donwload "BCR Store .zip")

  *store button is busy

    [recommended sysex software]
     Windows : MIDI ox
     Mac osx : SysEx Librarian

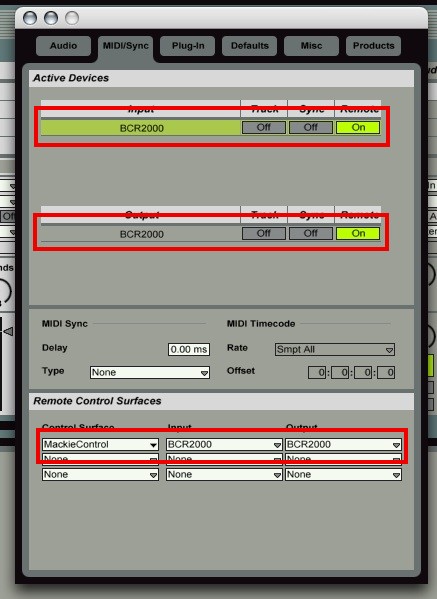

2. Settings up Live5

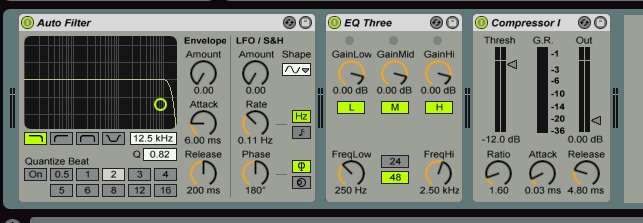

3. Edit Plugin Parameters

         example


       1. select a track
       2. press the "plugin" button
       3. select a plugin by pushing the Group4 Encoder
               Encoder 1 : Auto Filter
               Encoder 2 : EQ Three
               Encoder 3 : Compressor


*V-POTs have no LED
   If you want to see the parameters,press the "Flip" button
  "Flip" button exchanges Faders to V-POTs

* If you want to control 9 or more parameters,
   use "page" buttons


4. Other

   BCR2000 Map Download

    <previous versions>
       MCE3beta1 Download
       MCE2 Download
       MCE1 Download

Tip  if you want to control "solo", set MIDI note number of push encoders to 8~15  ( previous versions)
